Medium Grain Graphite x 12"

Medium Grain Graphite x 12"
Click to enlarge
Price: $44.00
Product ID : GraphMedium
E-mail to a friend | Add To Wish List

Purchase

2 inch by 12 inch
3 inch by 12 inch (+$20.00)
4.25 inch by 12 inch (+$66.00)

Description



The Medium grain is similar to what popular commercial HPR motor vendors use as reusable nozzle material.  This new stock is available in 2", 3",  4" diameters as 12" lengths only.  Other sizes are available by request.



    * Grain size .030 inch

    * Specific Resistance .00047 ohm-inch

    * Flexural Strength 6,000 psi

    * Compressive Strength 12,300 psi

    * Shore Hardness 48

    * Porosity 13%

    * Tensile Strength 3,600 psi

    * Bulk Density 1.70 - 1.76 g/cc

    * Ash 500 ppm



Notes from Users of Our Graphite

We are using this material for the nozzle throat in our own sub-orbital vehicle SORAC and will let you know how it does in extremely long burns. (it does really well - ed.)

Professor Terry Mcreary of Kentucky State and author of "Experimental Composite Propellants" says this about our 1.5" tapered rod:

"I've ordered several items from Aerocon in the past, notably graphite. For those into (whisper it) motor construction, six bucks worth of surplus graphite rod makes about a dozen nozzles, each of which is reuseable. I've used some nozzles a dozen times without noticeable erosion from low-metals propellant."

Looking forward to doing more business with Aerocon,
P'rfesser

Thanks P'rfesser!

Here's what Steve Decker thinks about them:

Hi Bob,

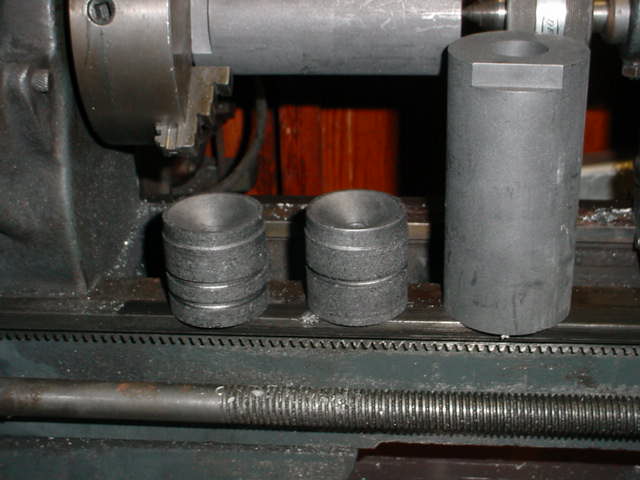

I just wanted to let you know that I'm having fun machining up the graphite electrodes I recently bought from you. I'm turning them down to make 29mm Kosdon nozzles and I'll probably be able to get 6 or 7 nozzles from each electrode.

Graphite machining IS messy, but I've been using a "Sand & Kleen" vacuum system, which keeps the mess to a minimum.

Anyway, on my Homier lathe, I just chuck the short threaded end and let the tapered end rest inside the hole of the tailstock. This eliminated the need for a center or steady rest as I true the cylinder.

Works great!

Thanks for offering these electrodes.

Best Regards,
Steve Decker



Also a great material for Stirling Hot Air Engines

For additional Stirling Engine Parts please go here:

Jerry E. Howell - Quality Stirling Engine Plans & Kits



The Medium grain is similar to what popular commercial HPR motor vendors use as reusable nozzle material.  This new stock is available in 2", 3",  4" diameters as 12" lengths only.  Other sizes are available by request.
