BurnSim software

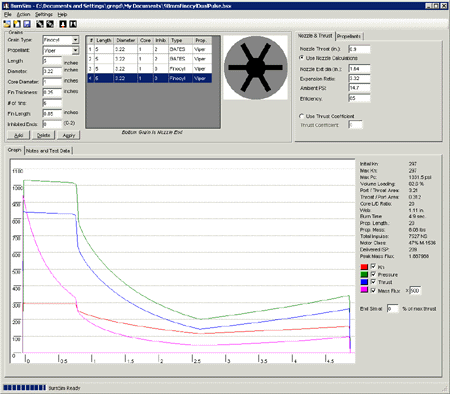

Click to enlarge
Price: $39.00
Product ID : burnsim

Purchase

Purchase Burnsim 3.0
Upgrade from version 2.X (-$25.00)

Description

What is BurnSim?

BurnSim is a solid rocket steady-state ballistic simulation software package for the Windows platform. In a nutshell, input your motor, nozzle and propellant characteristics and BurnSim calculates the Kn through the burn and predicts estimated chamber pressure and motor performance. Once your motor design is in BurnSim, you can tweak the parameters such as nozzle diameter or grain core diameter and instantly see how the Kn, chamber pressure, and motor thrust is affected. BurnSim will also optimize your nozzle design.

Motor designs in BurnSim can be saved and recalled for later use. In addition, test data can be imported and graphed alongside simulation data to compare sims to results. BurnSim allows you to make notes about your propellants and motor designs, all saved in one convenient location.

Once you're happy with the your motor design, BurnSim can then export a .ENG file for use in RockSim, wRasp or other rocket flight simulators. You may also export the data to a text file (comma delimited) for use in virtually any system. You can estimate your motor's performance and rocket's flight before you even cast a grain!

Features



  • Supports the following grain configurations in any number and combination:
    • BATES grains with 0-2 restricted ends
    • End burning grains (defined as BATES grain with zero diameter core)
    • Moon or Offset Core
    • D Grains
    • C-Slot
    • Finocyl
    • Star
    • X-Core
  • Different propellant types can be specified for each grain
  • Instantly see a graph of Kn, chamber pressure, thrust, and see how it changes when you change motor attributes.
  • Graph Mass Flux over the burn, a value that can be used to monitor erosive burning
  • Import test data and graph it along side simulations
  • Save your motor designs and propellant characteristics, as well as notes and imported test data
  • Export predicted motor performance into .eng files for use in Rocksim or wRasp
  • Export predicted motor performance into .csv files (comma delimited text files) for use Excel or any other program.
  • Thrust estimations based on nozzle geometry
  • Optimize your nozzle design for maximum performance.
  • Propellants can be defined with characterization data that changes over varied pressure ranges




Can't tell how ya much I've benfited from your new program. Did a lot of mixing the last 2 weeks (over 75 lbs), and every motor I designed with the aide of your BurnSim tool performed as predicted. On one flight I used your .eng import feature for Wrasp, and my predicted altitude of 6281' was off 3 feet per Adept! Ya got a winner there ole buddy, thanks for your hard work. As far as I'm concerned, I still owe ya one....

-Pat Gordzelik

President Tripoli Amarillo, L3CC, TAP

Future Features



  • Pressure drop (burnout or boost-sustain) transient simulation
  • Additional Grain types, requests?
  • Graphical grain iteration, allowing for any 2D grain shapes
  • 3D grain burn simulation
  • Support for units other than English
  • Erosive burning predictions
  • Improved Printing of simulation data
  • Your suggestions!

Click picture for larger view

PLEASE NOTE!

BurnSim estimates chamber pressure and performance assuming steady state operation. BurnSim (currently) does NOT take into account erosive burning effects which can significantly raise chamber pressures in motors with high L/D ratios. Test all motors in a safe environment, and always assume the motor can fail. Be prepared.








BurnSim is great! Easy to use, very accurate, versatile, and just plain fun to play with.

-Terry McCreary
Tripoli Board of Directors
Author Of Experimental Composite Propellant






The Personal license entitles one person's use of BurnSim, up to 5 installations / reinstalls. For multiple users, volume discounts are available. Please contact us for details.





Click here to download current version Version 3.1.8 Full Install (<1 meg)



You may download BurnSim and use it at no cost, with some limitations. Until activated, BurnSim will only run 10 simulations at a time, and you cannot save your files. For the small license fee of $39.00 you get unlimited personal use of the software (single user - up to 5 installs/reinstalls). BurnSim 2.x license holders can upgrade to version 3.0 for $14.00. This fee supports the author's efforts and promotes the continued development of BurnSim.

Version History

Version 3.1.8
More UI scaling fixes for Vista / W7
C* added as a propellant characterization property
Miscellaneous minor bugfixes

Version 3.1.6
Rolled to Visual Studio 2008 / .NET 3.5
UI scaling fixes for Vista / W7
Automatic check for new versions
Bugfix - unit changes broke ENG file generation
Printing scaling fixes
Input checking on ENG export to prevent conversion errors

Version 3.0.0.123
added version check option to startup and help menu
bugfix - crash on grain grid update

Version 3.0.0.122
Removed popup when sim is run with no propellant grains
re-wrote logic driving the set max kn feature (so it actually works)
bugfix - when using arrows to move up and down in grain grid the grain fields and image were not updating
port/throat area ratio label updated to be readable when color changes to alert to possibly unsafe values
Added printer setting dialog when printing
Printing layout updated yet again, corrected aspect ratio of graph, added nozzle info

Version 3.0.0.121
bugfix - registry access failure errors when trying to set burnsim as default program for .bsx files
bugfix - changed registry locations used for activation so UAC will no longer cause conflicts
bugfix - propellants.xml moved from application folder to user documents folder and renamed to burnsim3_propellants.xml to avoid UAC confict
bugfix - help file not always opening when user hits F1
bugfix - x axis modification failing ungracefully if end is zero and start > 0 (error condition if start > end)
bugfix - errors / hang when deleting last grain from grid, defaulted to selecting top grain after delete. Now selects grain closest to what was deleted, no errors
typos and other corrections to help file
bugfix - when updating grains highlighted selection no longer is lost after clicking 'update' button
added buttons to move grains up and down in grains grid
printing format changes (printing is a work in progress, but getting better)

Version 3.0.0.119
new grain types, tablet (uninhibited bates) and pie segment
bugfix - inconsistent results when clicking buttons or changing fields with a sim running
file association with .bsx
bugfix - files not loaded correctly when saved with 'use thrust coefficient' instead of nozzle calcs
added mass flow
added graph x axis start and stop for zooming in on the graph
bugfix - star major width values not displaying correctly in graph
bugfix - ctrl-c to stop simulation was not working
bugfix - if BurnSim was closed when max kn loop was running, would get into a loop and process would never die
bugfix - ENG export was using 'open' file dialog instead of 'save' file dialog
put back expansion ratio color coding
printing re-worked
bugfix - deleting all grains from a motor while sim is running caused a hang
bugfix - finocyl grain validation
bugfix - when opening older burnsim files without propellant data and the propellant isnt already in the system

Version 3.0.0.99
bugfix - expansion ratio and nozzle exit diameter problems fixed
bugfix - installation over old version no longer requires uninstallation first
bugfix - was not redrawing graph when turning off graph lines, now does
perf - sim time improved by 20% on motors using same propellant in all grains
bugfix - propellant data saved to motor files didnt include propellant PVPs and notes



Version 3.0.0.98
bugfix - max kn not working
bugfix - zero nozzle throat error when clicking new sim button
bugfix - unsaved file check when clicking new sim button

Version 3.0.0.97
Context Sensitive Help / documentation
Calcluate exit dia from expansion ratio
Port/throat ratio is back, as well as throat/port
Graphic display of propellant grains
Ability to mix grains of different propellant type
Vary a, n, and ISP* for different pressure ranges
UI changes and miscellaneous bug fixes
Keep notes on specific propellants and motors
Import test data and graph it alongside sim data for comparison, imported data saved to the motor for later use
Migrated to Microsoft .NET platform

Version 2.3.71 (release)
Added Finocyl Grain Support
Printing of simulation data is now supported

Version 2.3.67
Various bug fixes

Version 2.3.57 (release)
Added Finocyl Grain Support
Printing of simulation data is now supported
Added control of graph line colors
Can now choose from either nozzle calculations or given thrust coefficient for thrust calculations
Can now specify nozzle flow efficiency and ambient pressure for Nozzle / Momentum Thrust Calculations rather than assuming sea level
Installing over an existing version will no longer wipe out your propellant data
Friendlier to smaller motors (sub 10 NS)
Propellant properties now saved in motor files so when sharing files the propellant data is brought across with the motor data.
Fixed bug when exporting ENG files, delimiter between delays
Fixed "Subscript out of Range" error on motors with a >10 second burn time
Fixed bug where motor fields cleared if you hit cancel on file open dialog
Other miscellaneous bug fixes

Version 2.2.21
Minor bug fixes, including 'unknown registration condition' error

Version 2.2.17 (Release)
Removed 3rd Party Graphing component, graphing now faster, reduced installation dependencies
Fixed bug when exporting ENG files of regressive motor burns

Version 2.2 BETA 2
Corrected field validation issues with nozzle dimensions and simulation cutoff
Improved nozzle optimization speed
Added 'Minimize' button
Fixed UI Tab order issues
Other Miscellaneous minor bugs

Version 2.2 BETA 1
Updated UI
Fixed D Grain calculation issues
Added Thrust Coefficient calculations based on nozzle dimensions, no longer need to provide an estimated Thrust Coefficient.
Nozzle optimization
Cut off simulation at x% of max thrust

Version 2.1.14
Fixed form resize issue
Changes to help some win98 issues
Added option to set simulation sample rate
Export data to .csv
Corrected .ENG file issues
Added some tooltip help popups (hover mouse over items in BurnSim to see what they are)
Added status bar
Eliminated conflict with Hybrid Design Program

Version 2.1.2
Miscellaneous Bug Fixes
Licensing Validation

Version 2.0.17
Fixed several miscellaneous issues surrounding .eng file exporting
Removed dependancies on scripting components

Version 2.0.14
Corrected error when loading .bsx files from older versions of BurnSim
Added message when .eng export is cancelled
Found and fixed issues with exporting .eng files with invalid content

Version 2.0.13
Fixed zero thrust issue

Version 2.0.12
Corrected install issues
Added support for D grains
Now exports .eng files for use in rocksim or wrasp
ISP* vs ISP clarifications

Version 2.0.7
Initial public release
