100 kG Button Load Cell

Button type 100 kG Load Cell
Click to enlarge

More images

  • 100 kg button load cell
Click to enlarge
Price: $115.00
Product ID : LC100B
E-mail to a friend | Add To Wish List

Purchase

Description

Our 100 kG button type load cell.

Alloy steel & stainless steel body and internals. Bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments.

Suitable for test stands, electronic platform scales, hopper scales, and other electronic weighing devices.

Load Cell Parameters:

Precison : G2

Temperature effect on span (%F.S/10℃): ±0.05

Comprehensive error (%F.S) : ±0.2

Temp. effect on zero (%F.S/10℃): ±0.05

Rated output(mv/v) : 2.0±0.04

Compensated temp. range(℃ ) : -10~+40

Creep(%F.S/30min) : ±0.02

Usage temperature range(℃ ) : -35~+65

Zero balance(% F.S) : ±1.0

Excitation voltage(V) : 9~12(DC)

Input resistance(Ω) : 700±10

Output resistance(Ω) : 700±5

Safe overload (%F.S) : 120

Ultimate overload (%F.S) : 150

Insulation resistance(MΩ) : ≥5000(100VDC)

Material grade : IP68




Wiring schematic diagram:

Red: Input ( + ) White: Output ( - )

Black: Input ( - ) Green: Output ( + )

4-core shielded cable(φ5×3000mm) 10 foot cable

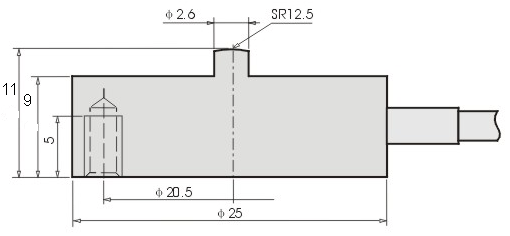

Cutaway Drawing, dimensions in mm

100kg button cell cutaway drawing
