Model 1607- 7,500 PSI Adjustable Relief Valve

Model 1607- 7,500 PSI  Adjustable Relief Valve
Click to enlarge
Price: $85.00
Product ID : ae1607
Manufacturer: Aqua Environment
E-mail to a friend | Add To Wish List

Purchase

Min. Temperature -40F - standard
Min. Temperature -60F (+$6.00)
  • Buy 5 - 9 and get an additional 10 % off
  • Buy 10 - 15 and get an additional 20 % off
  • Buy 16 - 30 and get an additional 23 % off

Description

*The default selection shown above is generally good in stock, and can ship immediately. Choosing non-standard options may increase lead time 3-5 days.

AE Model Component Operation and Maintenance Sheets -Click to follow

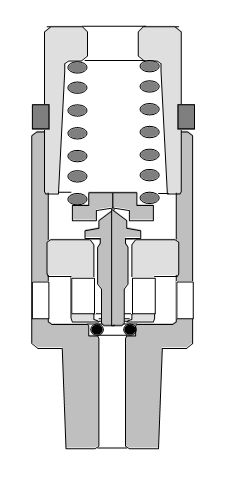

1607 lineart

Specifications   Model 1607 High Pressure Relief Valve

Series Designation 1607 Series

Type Relief Valve

Maximum Rated Pressure: 7500 psi

Outlet Pressure Setting Range/Adjustment Range: - 300-7500 psi

Inlet Port Size: 1/4 in. MNPT

Outlet Port Size Side vent; Not captured

Flow Capacity: 50 SCFM at 1500 psi

                                100 SCFM at 3000 psi

Flow Coefficient (Cv) 0.11 in. orifice diameter

Leakage: Bubble Tight

Outlet Pressure Rating: Atmosphere

Weight: 60 g

Overall Length: 2 1/2 in.

Hex Diameter: 7/8 in.

Minimum Temperature: -40 ºF

Body Material: Anodized Aluminum

Internal Materials: Brass

                           Steel Spring

Seal Materials: Viton

Repair Kit/Service Items 1607-12

Special Notes:  Safety wire holes on device, but no safety wire included.
