(This product no longer available)

Perfect for characterizing your propellant.

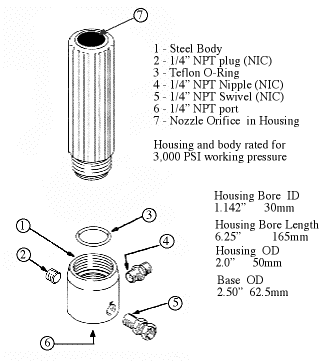

This housing and base is American made and has a 3,000 PSI working pressure! Steel base has 4 each 1/4" NPT ports. The 3/8" thick aluminum housing threads into the base for simplicity of operation.

Nozzle port is left uncut so that propellant worker can individualize housing for their desired nozzle OD.

2.5" OD Base Diameter fits nicely in most standard test stands.

The ID and length of the bore is great for 29mm propellant grains.
