Loading a Propulsion Polymers Motor

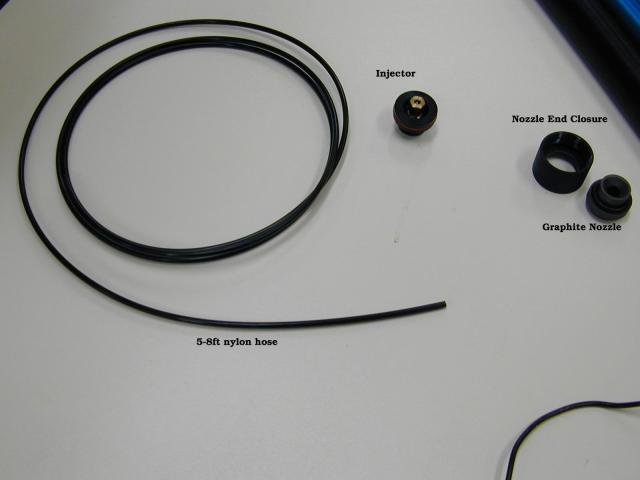

These are all the parts

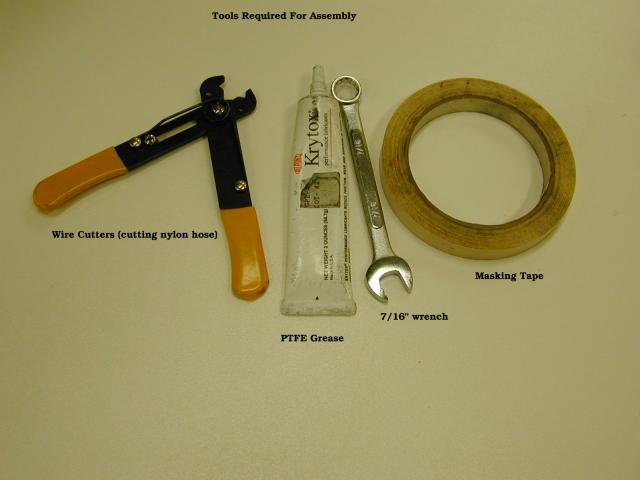

Here are the tools you need

Start by cutting a length of nylon fill tube, and selecting the appropriate motor tube and injector. Place an o-ring on the combustion chamber side of the nozzle and injector.

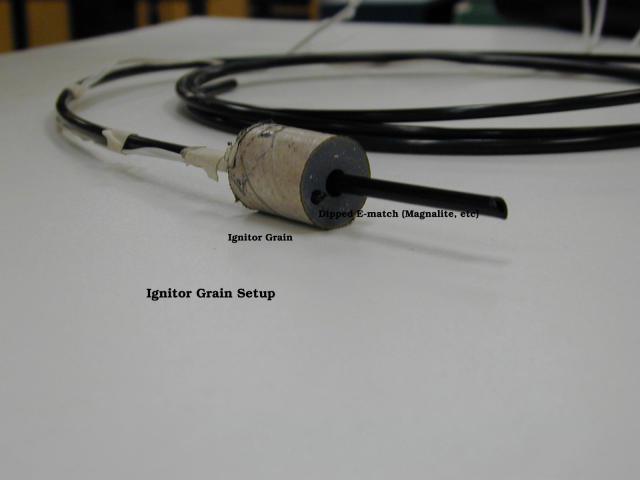

Next, place an ignitor grain, complete with ignitor over the fill tube.

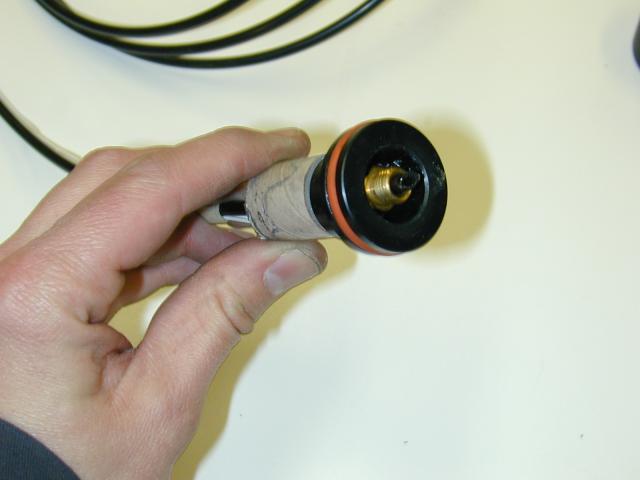

Following this, place the ignitor assembly into the injector, threading the fill tube up through the injector from the combustion chamber side.

Place a compression sleeve (olive) over the exposed nylon fill hose.

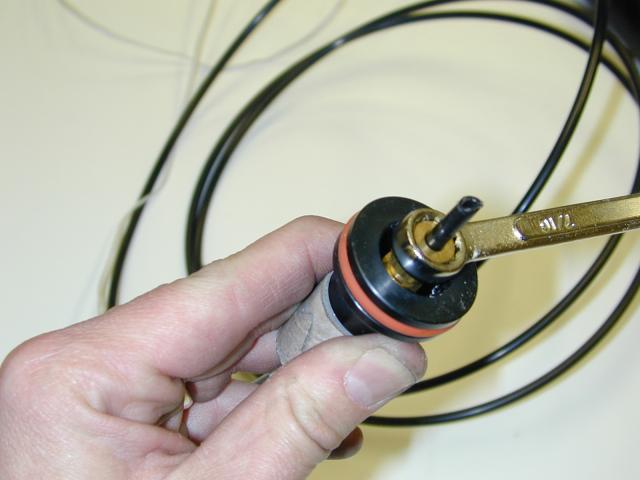

Place a compression nut over the sleeve and hose, and tighten with a wrench.

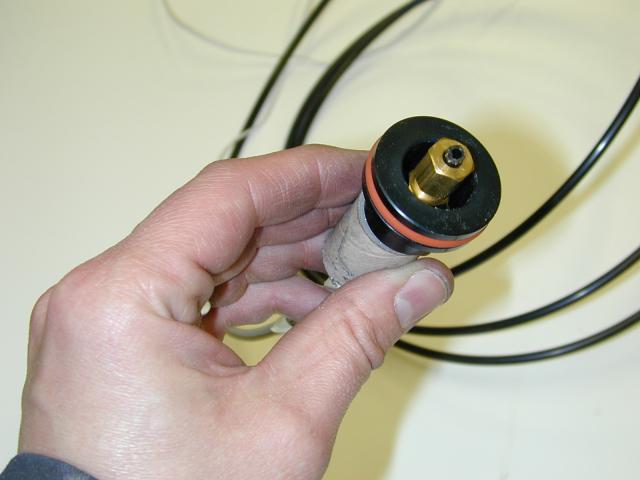

Trim off the excess fill tube

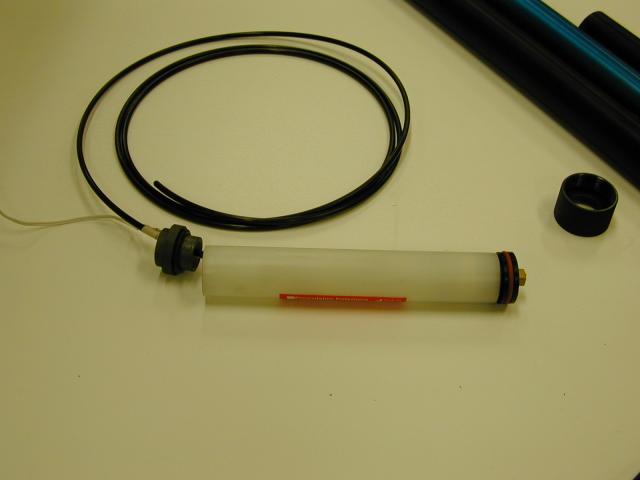

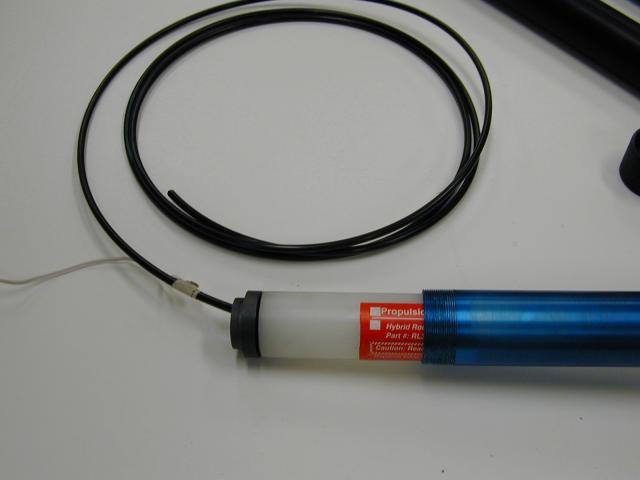

Place the injector and ignitor grain assembly into a fresh fuel grain, and thread the nozzle over the free end of the nylon fill hose and ignitor wire. If necessary, use masking tape to ensure that the ignitor grain is a very snug fit into the fuel grain.

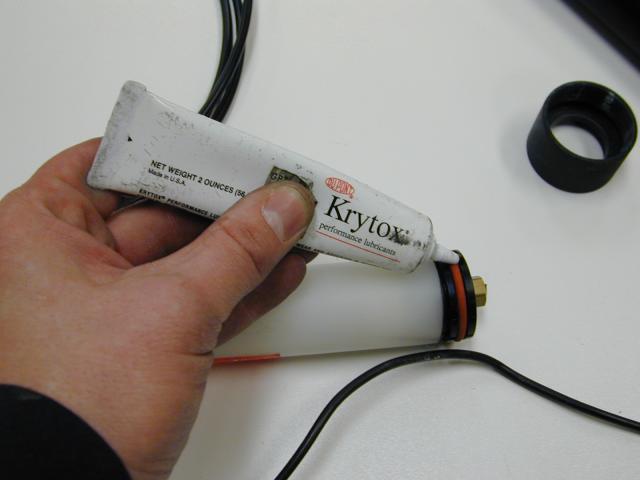

Grease the injector 'O' ring with suitable PTFE grease

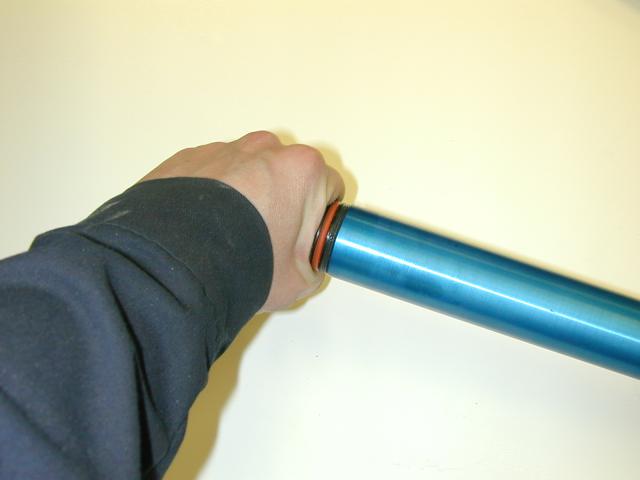

Slide the nozzle, fuel and injector assembly into the nozzle end of the motor tube

Screw on the nozzle end closure

Screw on the tank end closure
