Data Acquisition Package 01

Data Acquisition Package 01
Click to enlarge
Price: $208.00
Product ID : DAQ01
E-mail to a friend | Add To Wish List

Purchase

Description

Perfect for characterizing your propellant or collecting data from test firings.

Integration includes:

  • our Aerocon Amp LCA1 Single Channel Instrument Amplifier

  • 20kG, 50kG, 100kG Load Cell - Your choice of one. Higher capacity load cells are available.
  • SuperDAQ Four ±10 V Differential Analog Input Data Acquistion Module with Windows software, USB cable, and nifty screwdriver
  • Complete instructions

The only thing you supply is two 9 V batteries, signal wire, and a Windows compatible computer system. Optional signal wire, 100 feet, is available separately.


Because load cells are more accurate over a specific range of force we recommend getting the lowest and highest force load cell anticipated. For example, bench testing the DAQ system with the 20 kG load cell is very easy. Hand pressure on the cell registers easily. If you anticipate having a 400 kG load then you will also want a 500 kG load cell.

Load Cell Highlights:

The package includes a force single point shear beam load cell. Mount one end of the load cell in a fixture of your choice and apply force to the other end. As the load cell bends under force the signal through the bridge changes in a way that can be sensed by electronics.

2mV/V

Non-linearity(%F.S) : .03%

Hysteresis(%F.S) : .03%

Repeatability(%F.S): .02%

Output Resistance: 350 ohms


Single Channel Amplifier Highlights:

A simple yet sophisticated amplifier for millivolt load cells and pressure transducers.

Perfect for 2 and 3 mV/V load cells and transducers

FEATURES:

Precision design and quality construction.

Versatile and completely adjustable, customize your gain, balance, and offset to your specific needs.

High Quality Euro style screw terminals for input, output, and power.

Excellent front end for popular data acquisition (DAQ) modules such as Dataq and many others.

Bipolar output for full +/- 10 volt swing to input of DAQ module resulting in maximum DAQ resolution.

Eliminates need to modify DAQ for single ended or half resolution operation. +/- 9 volt to +/- 12 volt DC power.

Low power consumption, suitable for short term battery operation, 20 to 30 mA typical.

Configurable for full bridge or half bridge operation, half bridge operation includes a zero balance adjustment.

Half bridge configuration is handy for basic “home brew” two element load cells and for connection to low cost, three wire bathroom scale cantilever mounted strain gauges.

Stable when driving high capacitance long coaxial or shielded output cable. Internal precision 5 volt reference source for driving half or full bridge load cells and pressure transducers.

Configurable for popular 100 millivolt, 4 wire pressure transducers.

500 Hz bandwidth typical for load cells and pressure transducers.

Output noise of 1.3 mV rms typical for load cell configuration.

Output short circuit protected.


DAQ Highlights

Low-cost, Compact USB Data Acquisition Starter Kit

Four ±10 V Differential Analog Inputs

10-bit Resolution

Up to 240 Hz Sample Rate

2 Dedicated Digital Inputs

Analog and digital inputs are protected to ±150 and ±30 VDC or peak AC respectively

Provided with Software


Suitable for measuring preamplified analog signals, the DAQ01 in tandem with the included WinDaq software allows real time data acquisition, playback, and analysis performance equal to or better than other products that cost ten times or more than its low price. Predecessors of this instrument have been sold to over 20,000 hobbyists and professionals for countless data acquisition applications around the world. The DAQ01 continues this legacy with an improved interface, and noise-cancelling differential analog inputs that are protected to ±150 VDC or peak AC. This is our toughest and most tolerant starter kit ever.

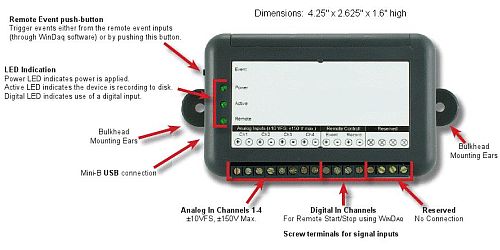

The DAQ01 offers four analog input and two discrete (digital) input channels. The analog inputs offer a fixed measurement range of ±10VFS, and are multiplexed to an integrated 10-bit ADC. Both analog and digital inputs are protected to ±150 and ±30 VDC or peak AC respectively. Sample rates as slow as 2.23 per min. and as fast as 240 per sec. (divided by the number of enabled channels) are supported. Included WinDaq software allows a real time display of any combination of analog channels, and the ability to stream acquired data to disk in recorder-like fashion. The DAQ01's two digital inputs are dedicated for remote stop/start and remote event operations using WinDaq software. WinDaq also includes software to review recorded data files, including waveform analysis and data file export to Microsoft Excel and other applications.


Four Analog Input Channels

Connect the DAQ01 to any preamplified signal in the typical range of ±5 to ±10VFS.

10-bit ADC resolution

Provides 19.5 mV resolution across the entire DAQ01 measurement range.

Ruggedized Inputs

All four DAQ01 analog inputs and both discrete inputs are protected to ±150 VDC or peak AC. Accidents that happen are quickly forgiven.

Noise-cancelling Analog Input Configuration

The noise-immunity of differential inputs minimizes the affects of common mode noise so often encountered in industrial measurements.

Built-in USB interface

The DAQ01 is provided with a built-in USB interface, allowing it to be connected and run with any laptop or desktop PC. The USB interface provides power to the DAQ01, eliminating clumsy external power supplies.

Wide OS support

Signed drivers are provided with the DAQ01 that allow trouble-free installation for Windows XP and both 32- and 64-bit versions of Windows Vista and Windows 7.

Included software

Our data acquisition software offers real time display and disk streaming for the Windows environment. The real time display can operate in a smooth scroll or triggered sweep mode of operation, and can be scaled into any unit of measure. Event markers with comments allow you to annotate your data acquisition session with descriptive information as you're recording to disk. Raise your productivity to new heights with WinDaq's unique multitasking feature. Record waveform data to disk in the background while running any combination of programs in the foreground — even WinDaq Playback software to review and analyze the waveform data as it's being stored! Playback supports waveform analysis (Statistics, X-Y plots, frequency analysis) and the ability to export data to Microsoft Excel. Recording and playback software is provided free with every DAQ01 purchase.


Differences between DAQ 01, 02, 03

DI-145 Data Acquisition Starter Kit DI-149 USB Data Acquisition Starter Kit DI-155 USB Data Acquisition Starter Kit
Features DAQ01 DAQ02 DAQ03
Channels 4 differential 8 differential 4 differential
Resolution 10-bit >13-bit
Full Scale Voltage
Measurement Range
±10 VFS
fixed
±50 VFS
programmable
Programmable Measurement
Ranges
±2.50, 3.125, 5, 6.25
10, 12.50, 25, 50 VFS
Maximum Sample
Throughput Rate
240 Hz 10,000 Hz* 10,000 Hz
Maximum Single Channel
Sample Rate
240 Hz 10,000 Hz 10,000 Hz
Digital Inputs
(including counter/frequency)
2
(reserved for WinDaqsoftware)
4
General Purpose
Counter/Frequency Inputs 1/1 1/1
Digital Outputs 4 (30 VDC or Peak AC, 500 mA sink max)
Interface USB
Supported OS Windows XP, 32- or 64-bit versions of Windows Vista and Windows 7
