PCB screw switch
Click to enlarge

More images

Click to enlarge
Price: $7.15
Product ID : PCBSW

Purchase

Description

PCB mounted Screw Switch - Option Switch

Manufactured by Jolo Industries,  P/N
OS-120

Use with printed circuit board or attach to a piece of G10.  Solder to the leads provided then tighten the screw to close the contacts.

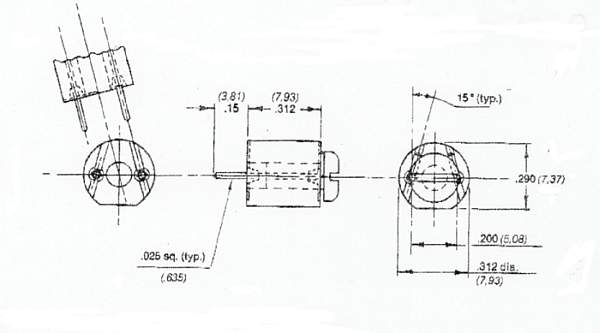

This unusual item consists of a small insulated 5/16" diameter terminal which has 2 solder pins on the bottom and a screw on top.

Materials:

Terminal: Phosphor Bronze, tin plated

Screw: Steel, tin plated

Insulator: Polyester, color Black

Specifications:

Current Rating: 10 amps @ 110 VRMS

Breakdown Voltage: 1800 VMRS (min.) with screw backed out two full turns
